| TC Series: Modern Commercial Thermostat

Pelican Touch Thermostat

Pelican Touch Thermostat

| TC Series: Modern Commercial Thermostat

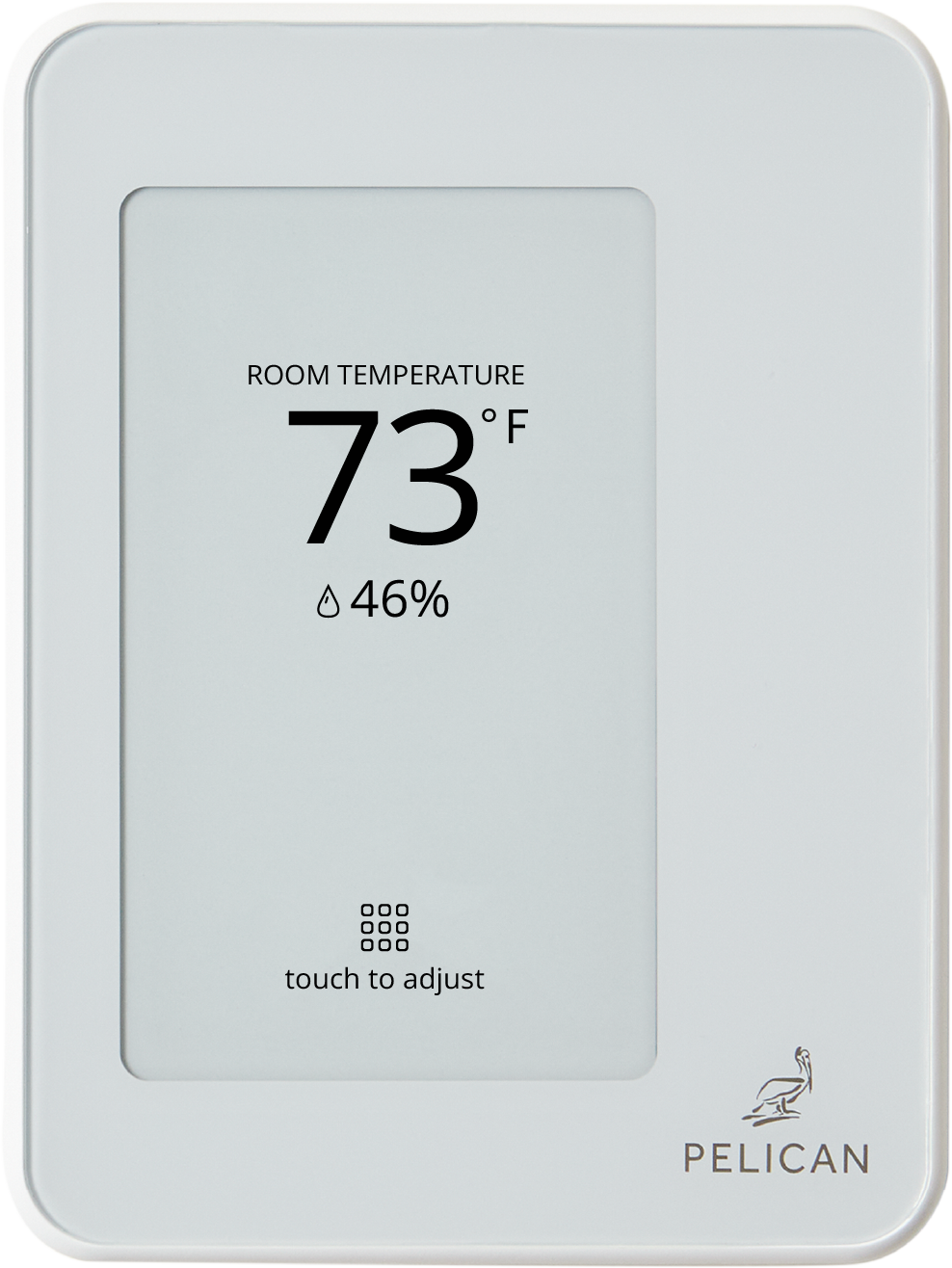

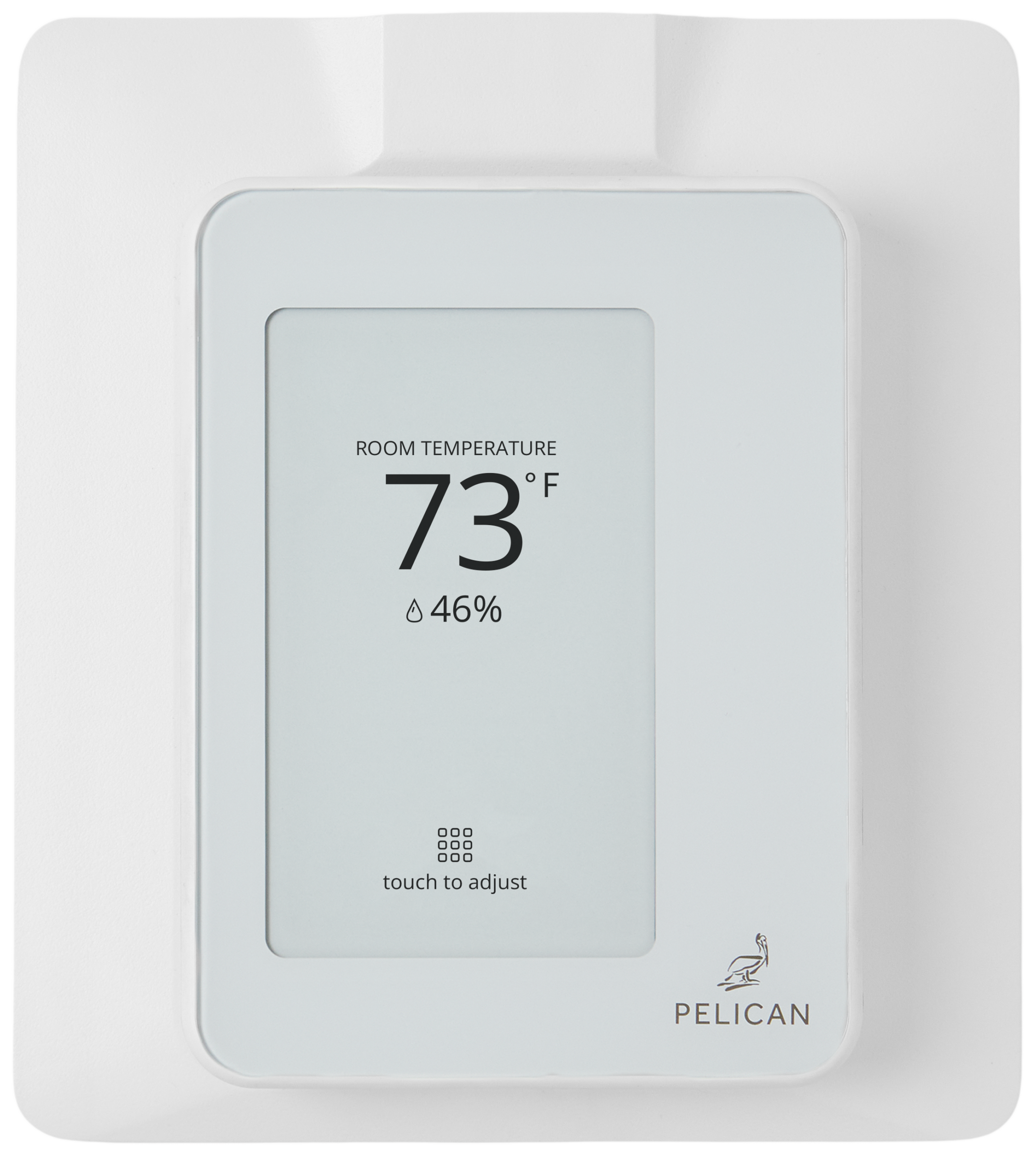

| E-Ink™ high resolution display.

To offer a crisp and clean look we integrated a high resolution E-Ink™ display with a glass touch panel.

The E-Ink™ mark and logos are registered trademarks owned by E Ink Holdings Inc.

| E-Ink™ high resolution display.

By utilizing a high resolution E-Ink™ display, the Pelican Thermostat provides a crisp and clean interface without enticing it to be touched.

The E-Ink™ word mark and logos are registered trademarks owned by E Ink Holdings Inc.

E-Ink™ high resolution display.

By utilizing a high resolution E-Ink™ display, the Pelican Thermostat provides a crisp and clean interface without enticing it to be touched.

The E-Ink™ word mark and logos are registered trademarks owned by E Ink Holdings Inc.

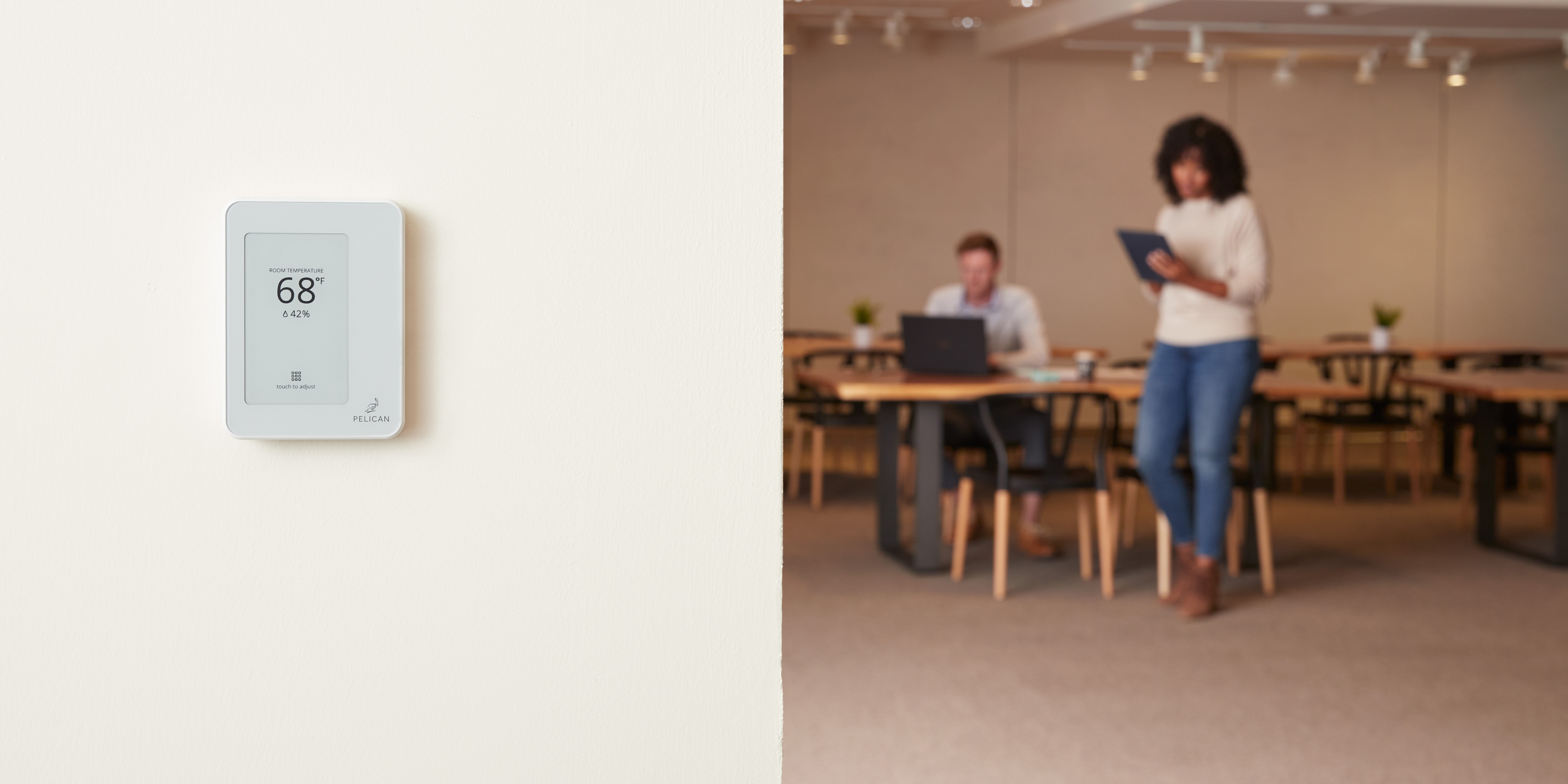

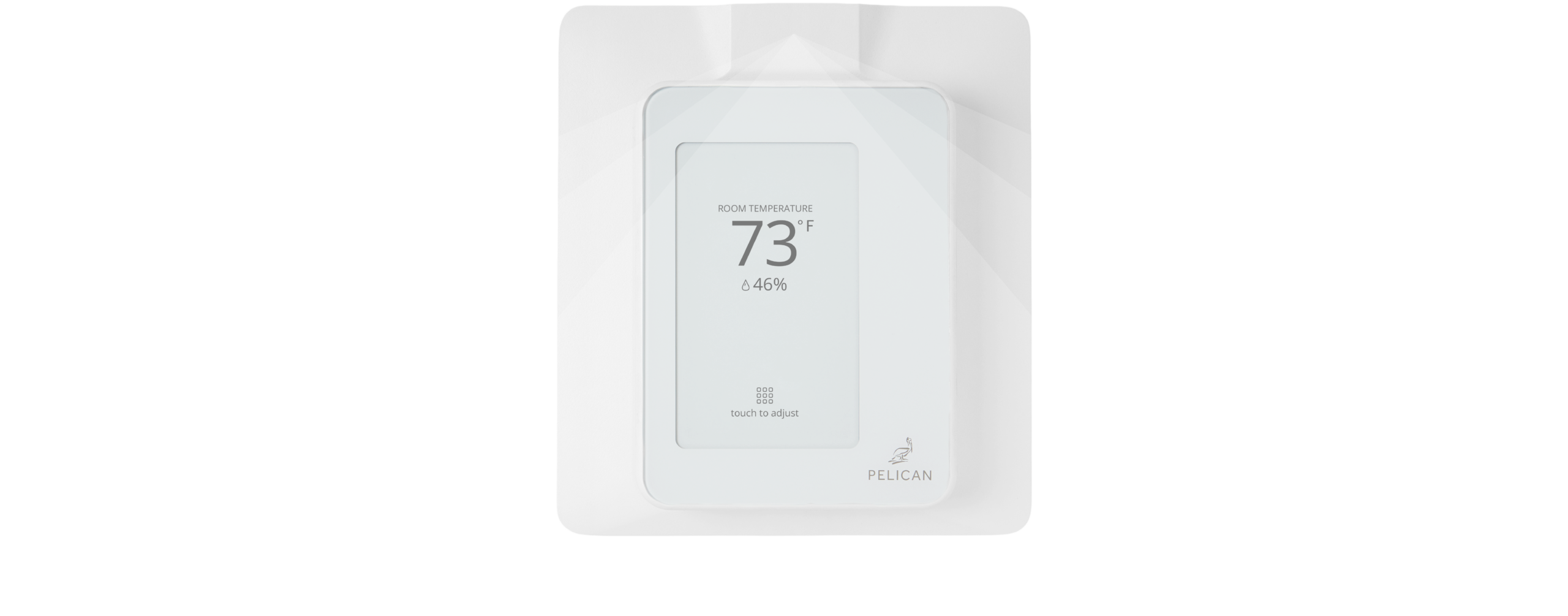

| Thinnest commercial thermostat on the market†.

Our modern thermostat both blends into the wall, while also standing out just enough to match your commercial facility's modern high-tech look.

†Based on 2021 research done by Pelican Wireless Systems.

| Thinnest commercial thermostat on the market†.

Our modern thermostat both blends into the wall, while also standing out just enough to match your commercial facility's modern high-tech look.

†Based on 2021 research done by Pelican Wireless Systems.

Thinnest commercial thermostat on the market*.

Our modern thermostat both blends into the wall, while also standing out just enough to match your commercial facility's modern high-tech look.

*based on research performed by Pelican Wireless Systems 2021

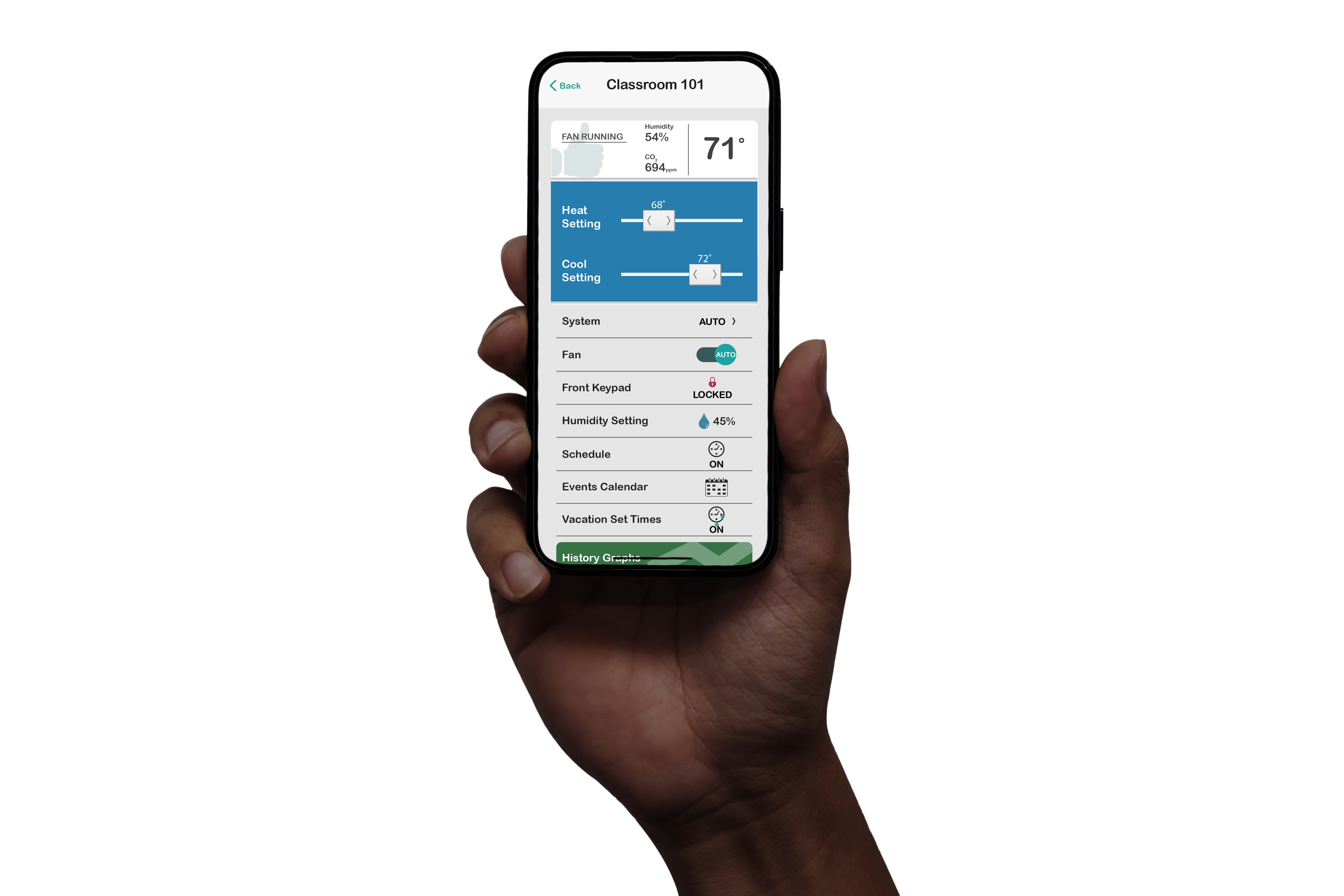

| Web-App control.

Right from the Pelican App you can manage all aspects of the thermostat: schedules, temperature set-points, and more. Plus the thermostat auto-pushes climate data and provides advanced equipment failure warning notifications.

| Web-App control.

Right from the Pelican App you can manage all aspects of the thermostat: schedules, temperature set-points, and more. Plus the thermostat auto-pushes climate data and provides advanced equipment failure warning notifications.

Web-App control.

Right from the Pelican App you can manage all aspects of the thermostat: schedules, temperature set-points, and more. Plus the thermostat auto-pushes climate data and provides advanced equipment failure warning notifications.

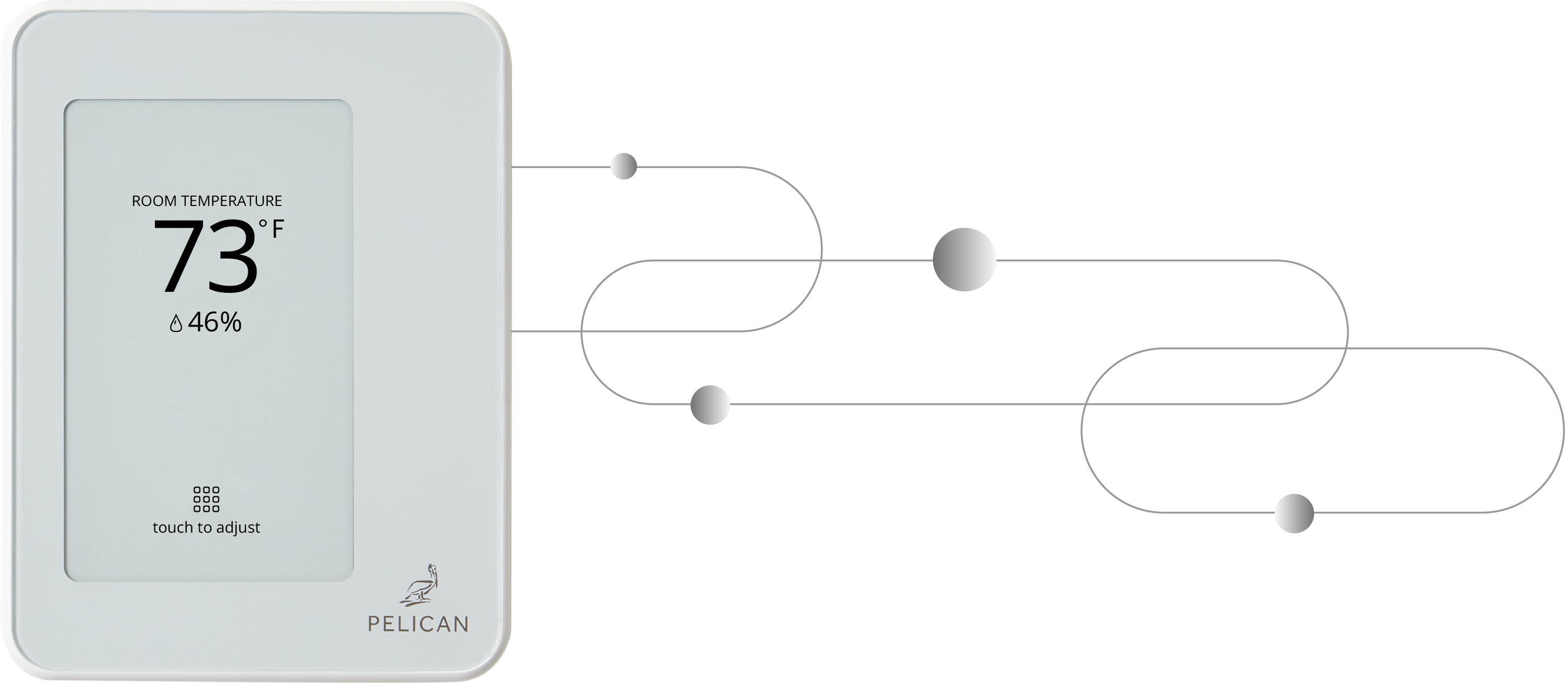

| Automated wireless.

Pelican's auto-wireless mesh technology makes bridging your Pelican devices to your Pelican Gateway quicker, safer, and more cost effectively. Each thermostat auto-connects and extends the wireless mesh for more Pelican devices to connect to the network.

| Automated wireless.

Pelican's auto-wireless mesh technology makes bridging your Pelican devices to your Pelican Gateway quicker, safer, and more cost effectively. Each thermostat auto-connects and extends the wireless mesh for more Pelican devices to connect to the network.

Automated wireless.

Pelican's auto-wireless mesh technology makes bridging your Pelican devices to your Pelican Gateway quicker, safer, and more cost effectively. Each thermostat auto-connects and extends the wireless mesh for more Pelican devices to connect to the network.

| Indoor comfort.

Utilizing big data analysis, Pelican thermostats automatically adjust how it controls your equipment to maintain your chosen room temperature.

| Indoor comfort.

Utilizing big data analysis, Pelican thermostats automatically adjust how it controls your equipment to maintain your chosen room temperature.

Indoor comfort.

Utilizing big data analysis, Pelican thermostats automatically adjust how it controls your equipment to maintain your chosen room temperature.

| Optimized start.

As occupied hours become near, the thermostat will auto-adjust when to enable your HVAC equipment to bring its room to the right temperature by the time people arrive.

| Optimized start.

As occupied hours become near, the thermostat will auto-adjust when to enable your HVAC equipment to bring its room to the right temperature by the time people arrive.

Optimized start.

As occupied hours become near, the thermostat will auto-adjust when to enable your HVAC equipment to bring its room to the right temperature by the time people arrive.

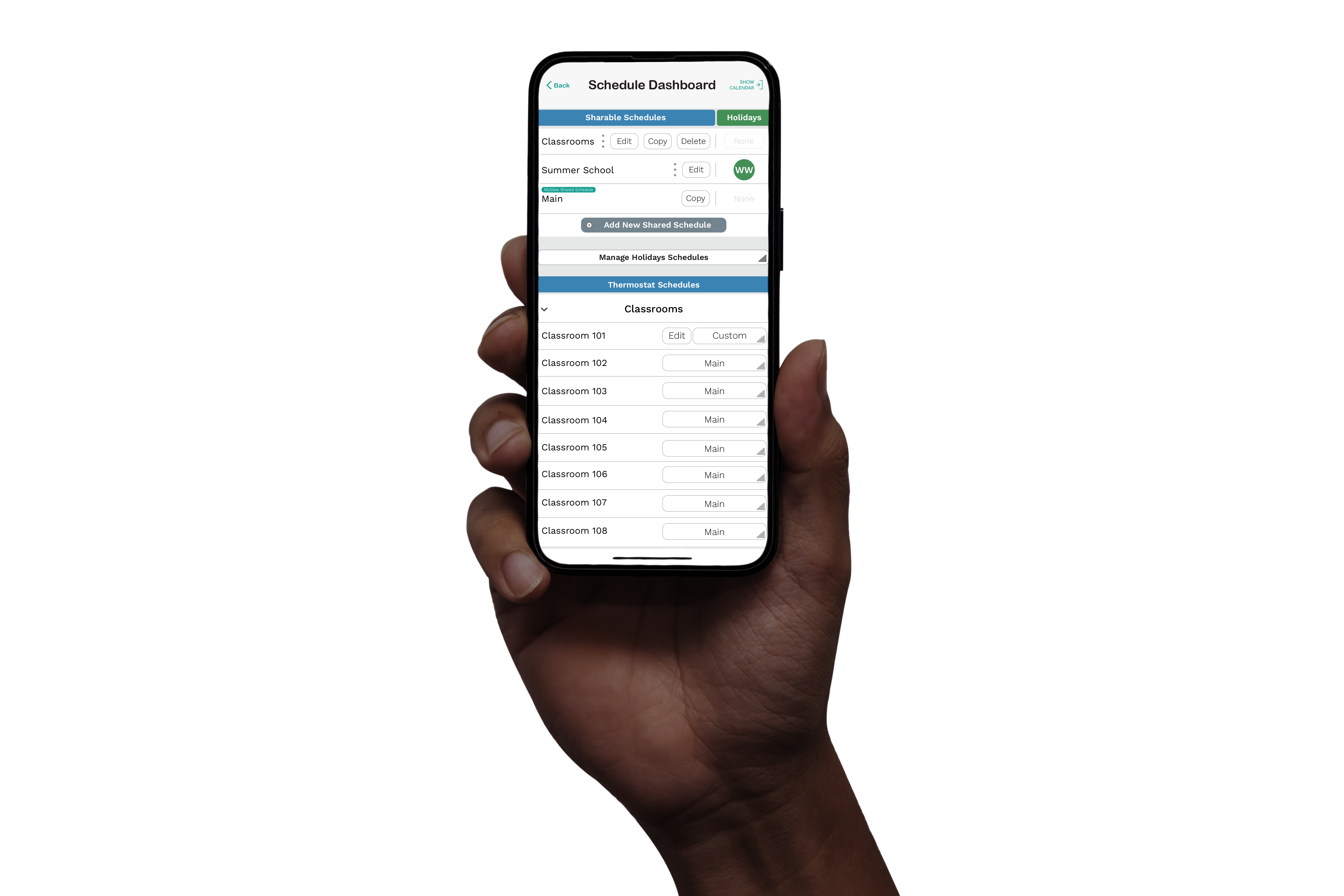

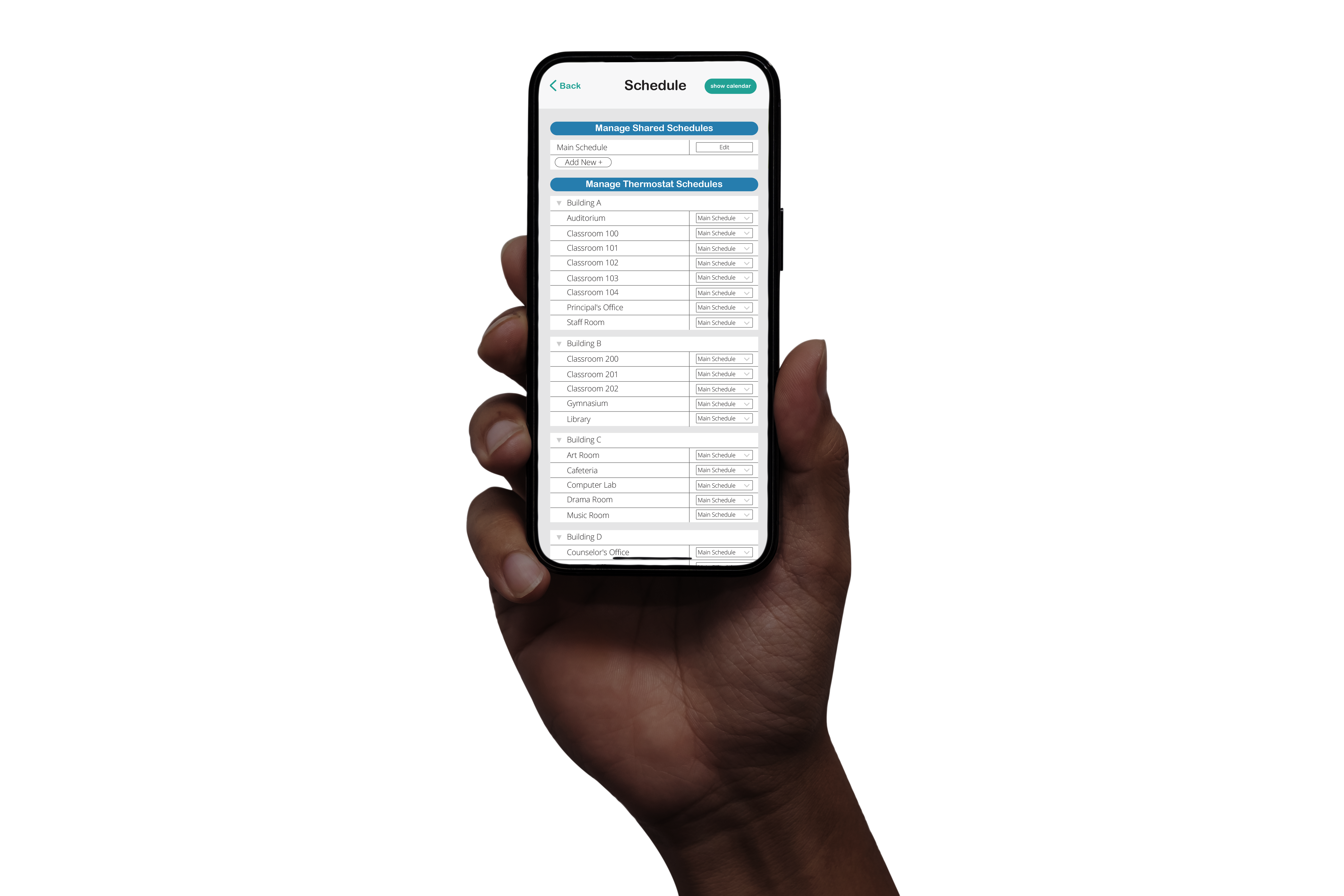

| Schedules under control.

Through your Pelican App, set occupied/unoccupied periods, event schedules, and vacation schedules. All easily tracked so you know all your thermostats are running only when they should be.

| Schedules under control.

Through your Pelican App, set occupied/unoccupied periods, event schedules, and vacation schedules. All easily tracked so you know all your thermostats are running only when they should be.

Schedules under control.

Through your Pelican App, set occupied/unoccupied periods, event schedules, and vacation schedules. All easily tracked so you know all your thermostats are running only when they should be.

| Data logs.

Real-time data is continually pushed to your Pelican App, so you can see what is currently active and review historical information.

| Data logs.

Real-time data is continually pushed to your Pelican App, so you can see what is currently active and review historical information.

Data logs.

Real-time data is continually pushed to your Pelican App, so you can see what is currently active and review historical information.

| Self diagnostics.

As the thermostat runs heating, cooling, and/or ventilation, it monitors how its room is operating. If it sees anything abnormal, it generates a notification on your Pelican App.

| Self diagnostics.

As the thermostat runs heating, cooling, and/or ventilation, it monitors how its room is operating. If it sees anything abnormal, it generates a notification on your Pelican App.

Self diagnostics.

As the thermostat runs heating, cooling, and/or ventilation, it monitors how its room is operating. If it sees anything abnormal, it generates a notification on your Pelican App.

| Additional Design Features.

FRONT PANEL

Etched Anti-Glare Glass

We chose a glass front panel to produce the best touch experience and visual presence.

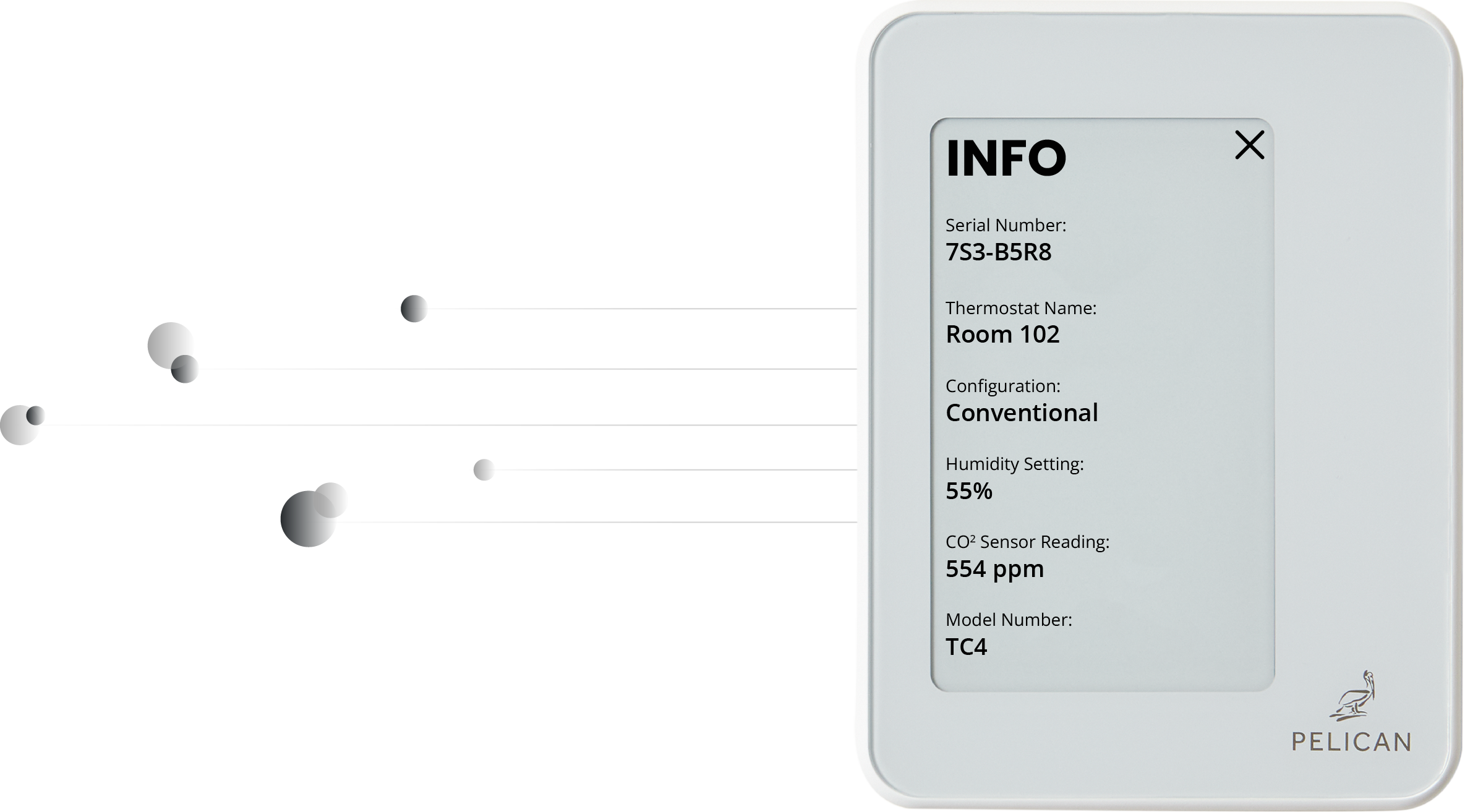

CLEAR INDICATORS

Readings

Temperature and humidity†† are displayed on the main screen. Carbon Dioxide‡ is shown under the info screen.

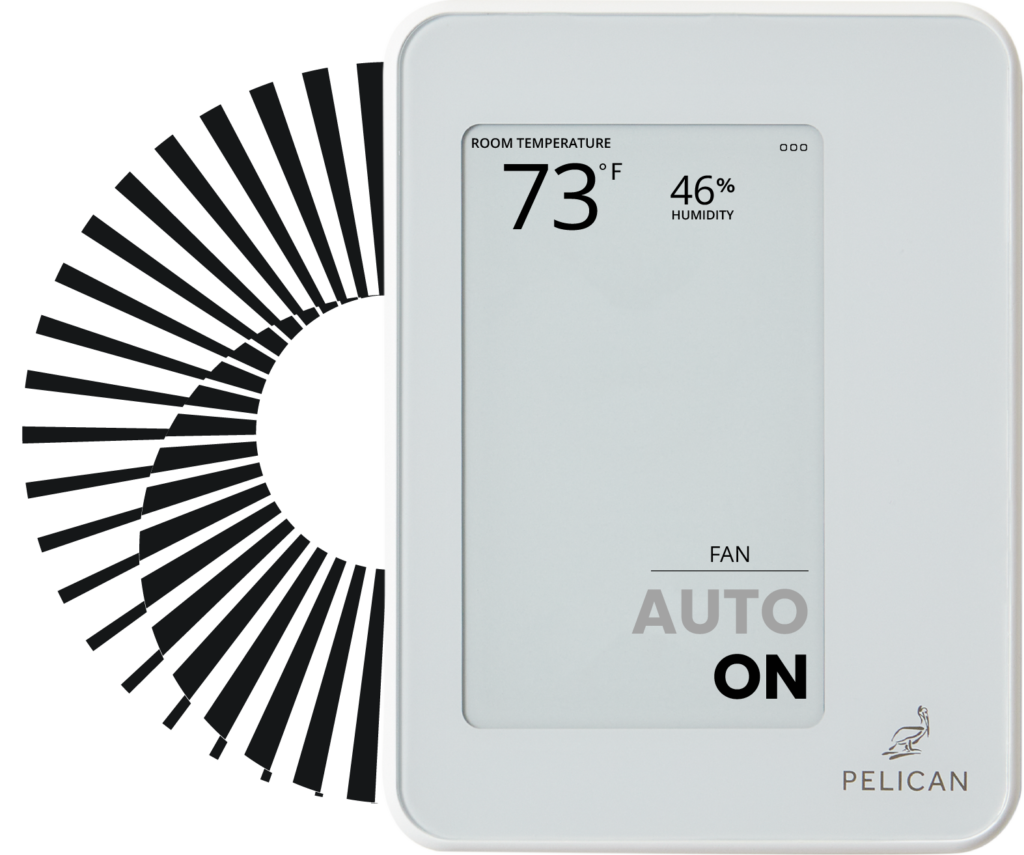

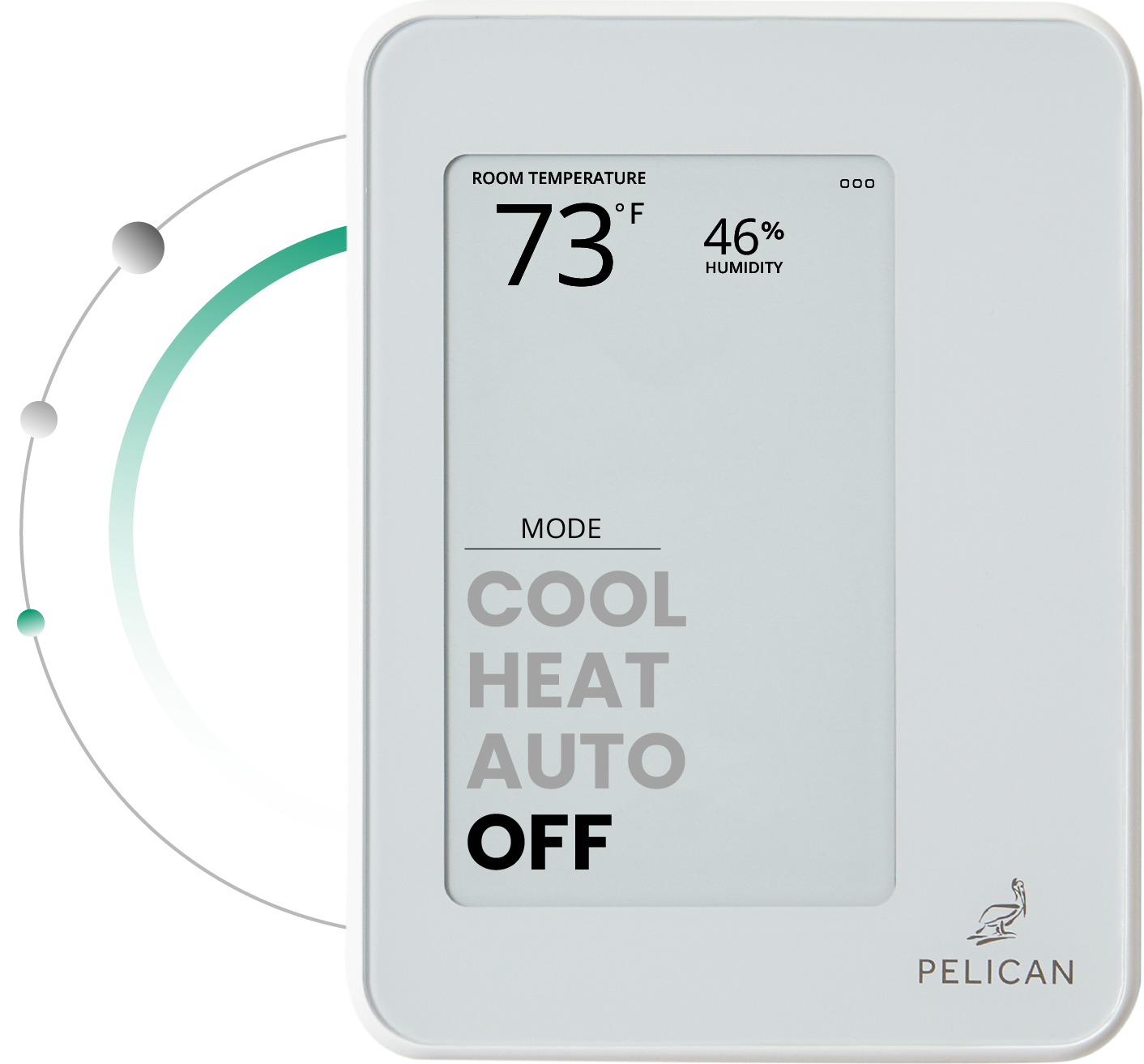

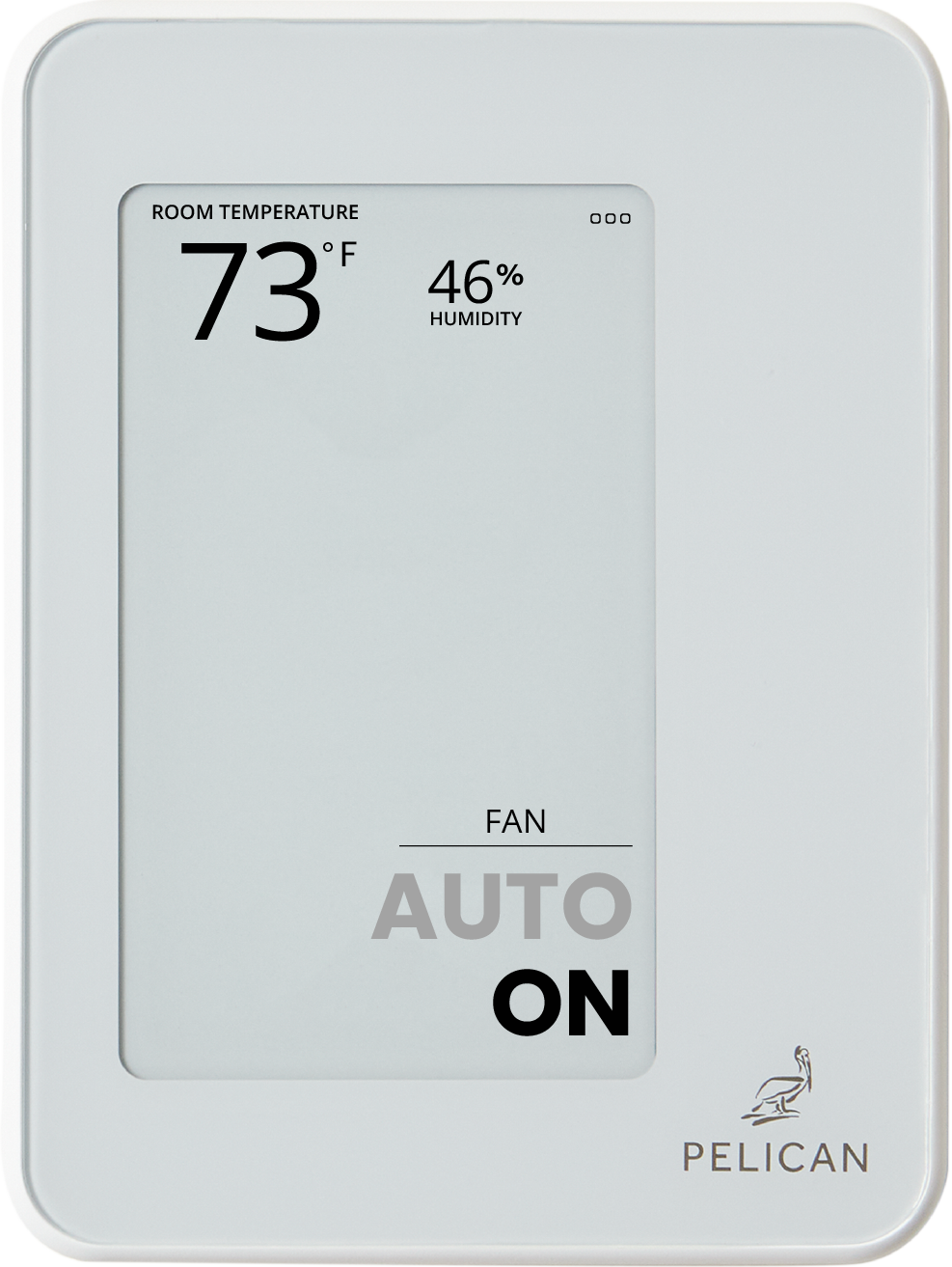

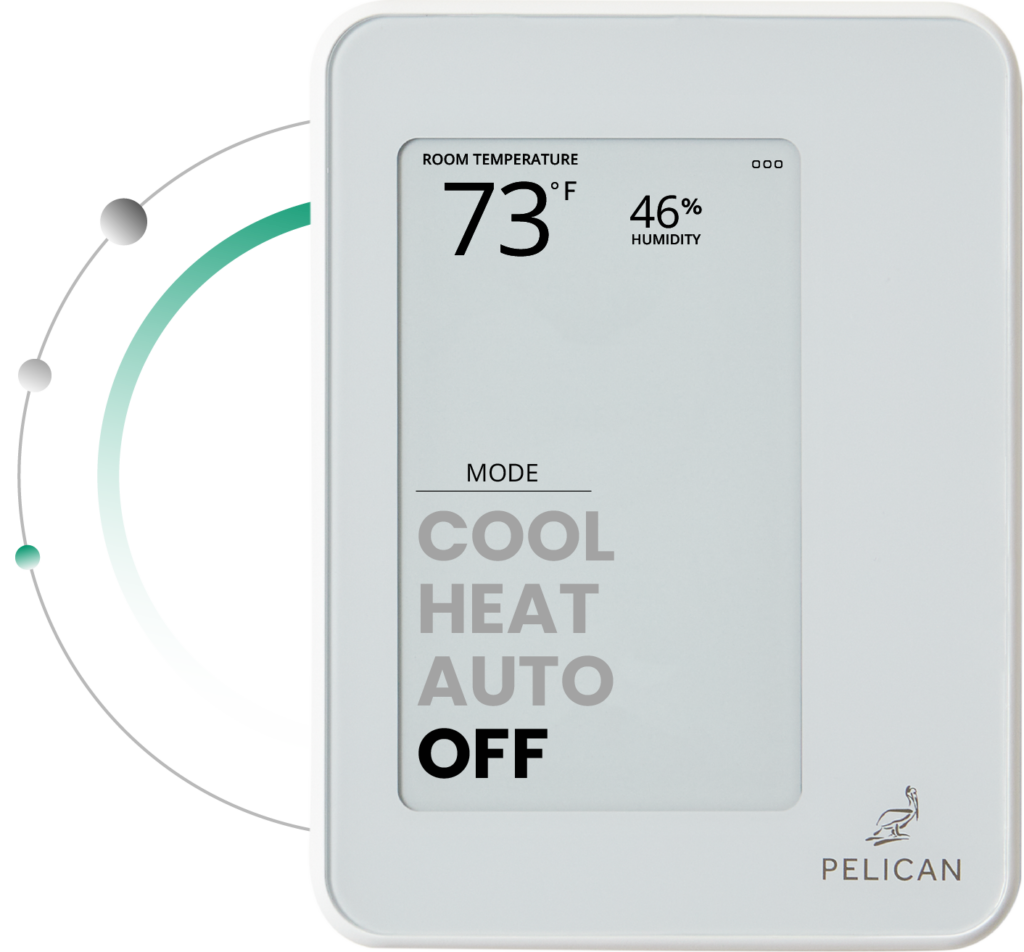

TOUCH INTERACTIVE

Adjustments

Simply touch the display and the screen transitions to easy to use set-points and system settings.

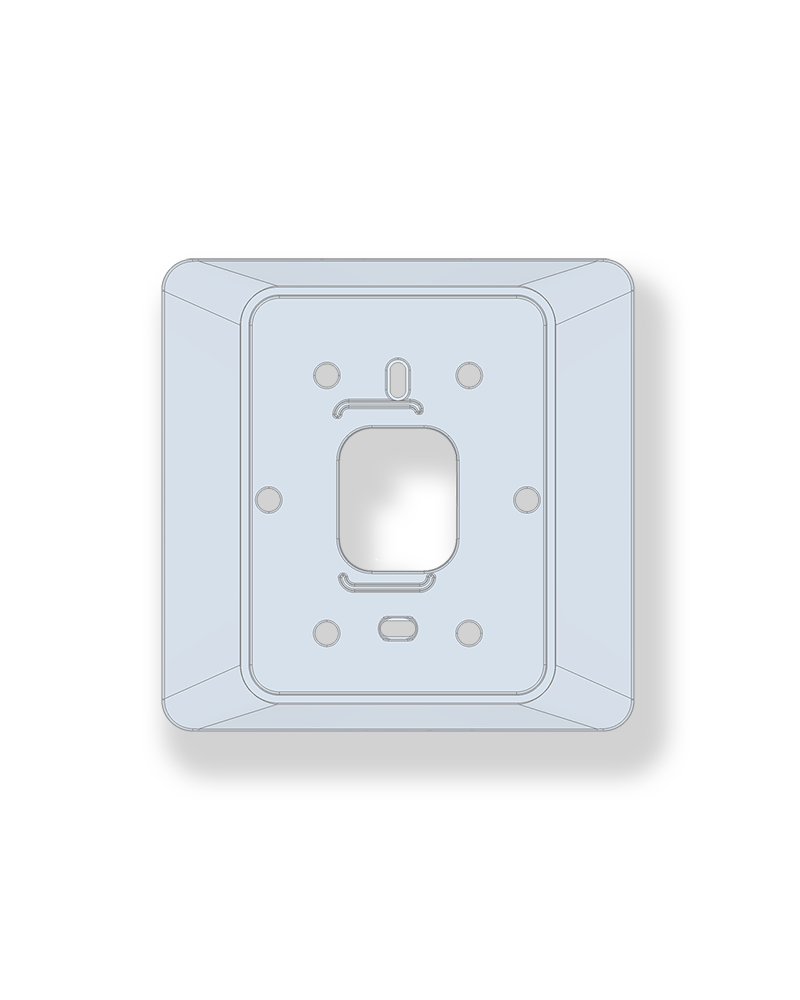

BACKPLATE

Metal Construction

The most durable backplate for long lasting and easy installation.

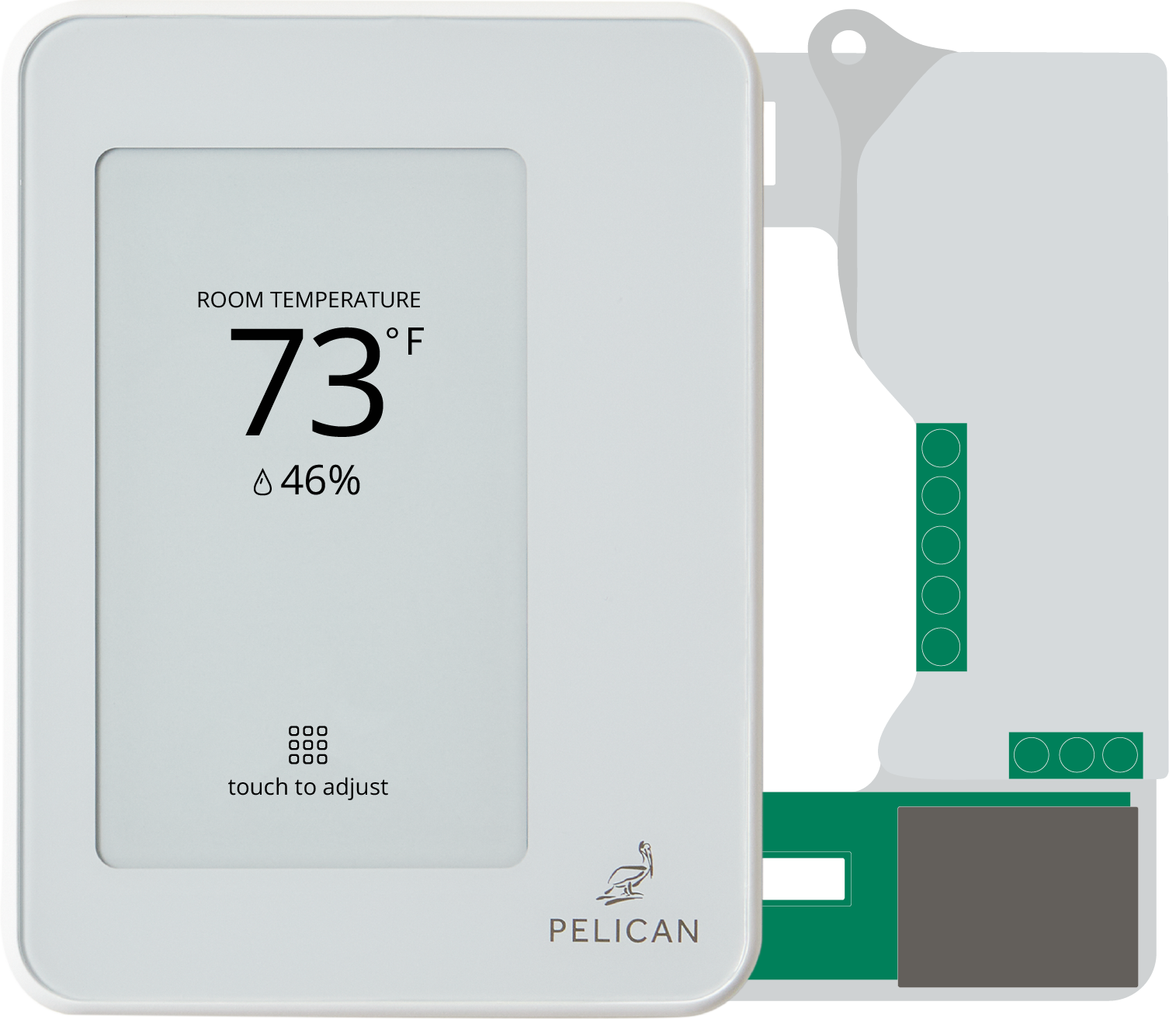

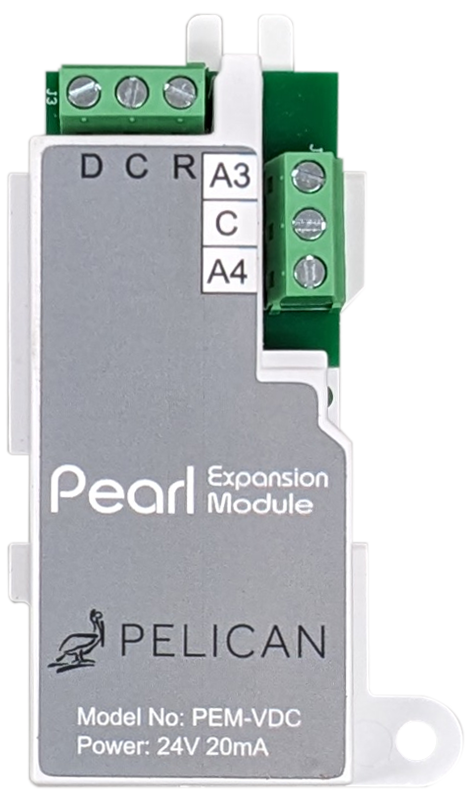

3-WIRES

Limited Wiring Module

If you are replacing an old thermostat and have limited wires, no need to run new wire. Just use the provided limited wiring module.

INTEGRATED SENSORS

All-In-One

The temperature, humidity††, and carbon dioxide‡ sensors are built right into the thermostat.

††Only available on the TC2 or TC4 thermostats.
‡Only available on the TC3 or TC4 thermostats.

| Additional Design Features.

FRONT PANEL

Etched Anti-Glare Glass

We chose a glass front panel to produce the best touch experience and visual presence.

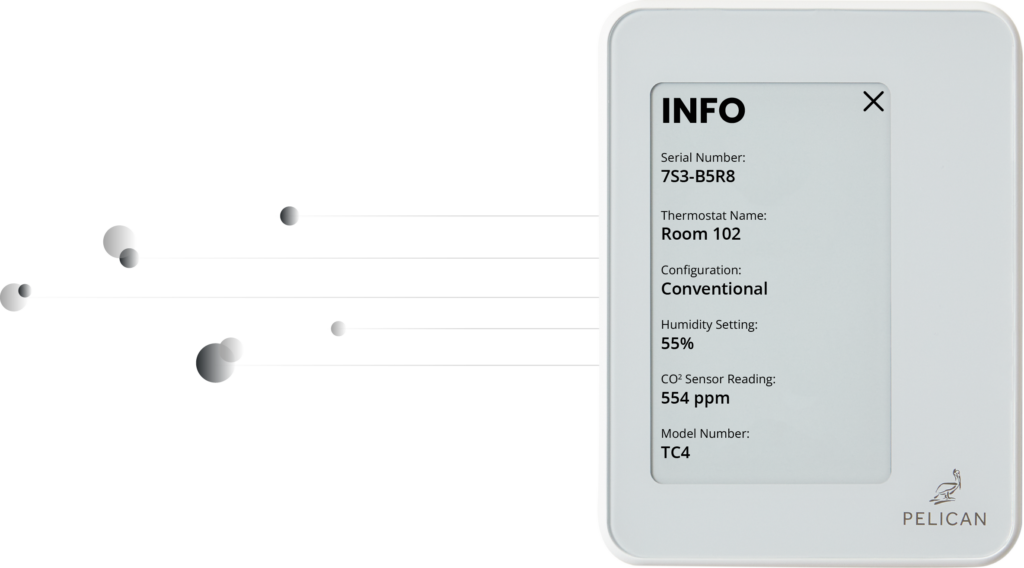

HIGH RESOLUTION DISPLAY

Readings

Temperature and humidity†† are displayed on the main screen. Carbon Dioxide‡ is shown under the info screen.

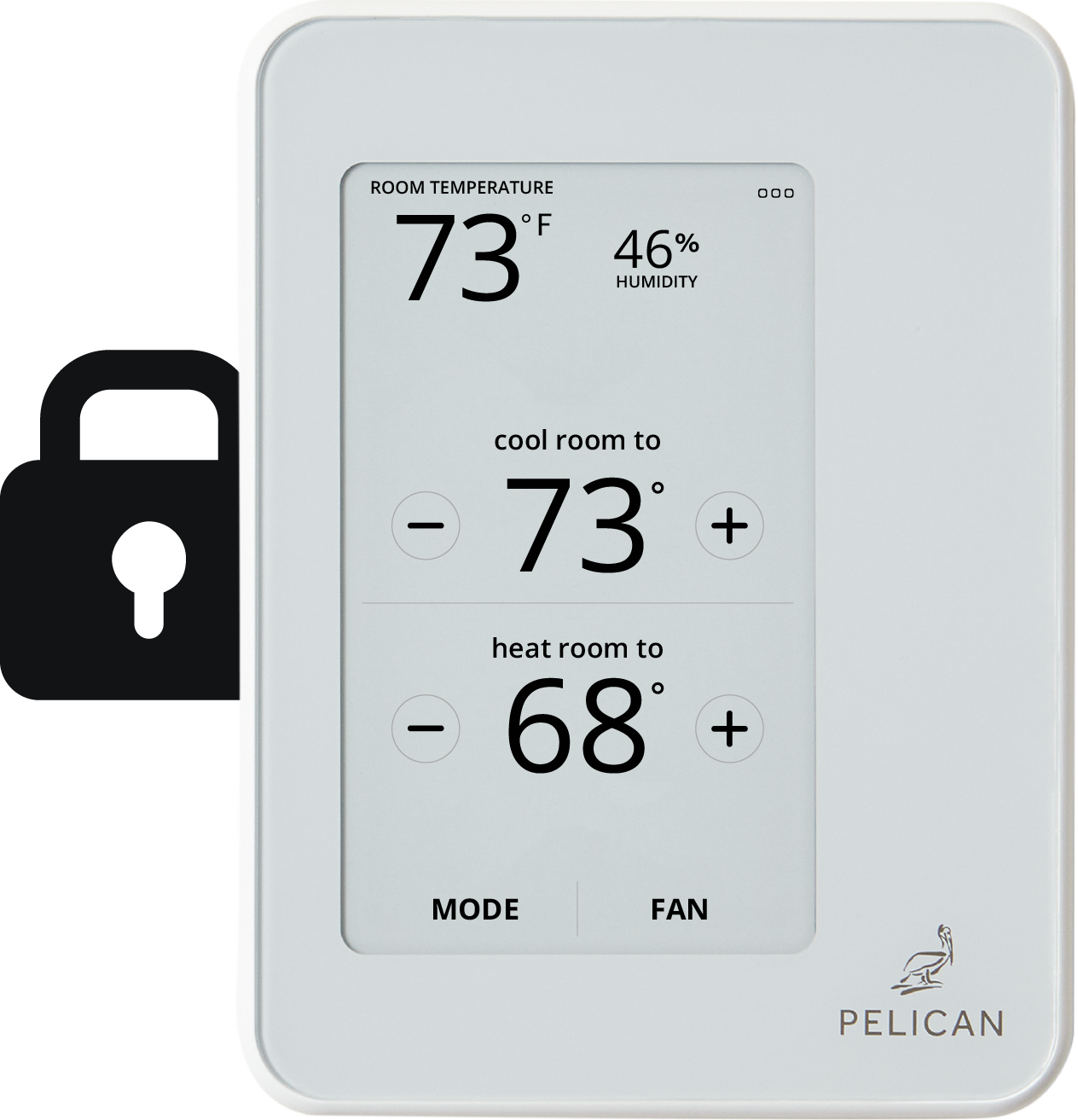

TOUCH INTERACTIVE

Adjustments

Simply touch the display and the screen transitions to easy to use set-points and system settings.

BACKPLATE

Metal Construction

The most durable backplate for long lasting and easy installation.

3-WIRES

Limited Wiring Module

If you are replacing an old thermostat and have limited wires, no need to run new wire. Just use the provided limited wiring module.

INTEGRATED SENSORS

All-In-One

The temperature, humidity†, and carbon dioxide‡ sensors are built right into the thermostat.

†Only available on the TC2 or TC4 thermostats.
‡Only available on the TC3 or TC4 thermostats.

| Additional Design Features.

We chose a glass front panel to produce the best touch experience and visual presence.

The most durable backplate for long lasting and easy installation.

Temperature and humidity† are displayed on the main screen. Carbon Dioxide‡ is shown under the info screen.​

Simply touch the display and the screen transitions to easy to use set-points and system settings.

If you are replacing an old thermostat and have limited wires, no need to run new wire. Just use the provided limited wiring module.

The temperature, humidity†, and carbon dioxide‡ sensors are built right into the thermostat.

†Only available on the TC2 or TC4 thermostats.
‡Only available on the TC3 or TC4 thermostats.

| Technical Specifications.

MODELS

TC1: Temperature Only
TC2: Temperature & Humidity
TC3: Temperature & Carbon Dioxide
TC4: Temperature, Humidity, & Carbon Dioxide

MOUNTING

Designed to be mounted an a vertical single gang electrical box or on a flat surface.

DIMENSIONS

in: 5.2 X 3.9 X 0.75
mm: 132 X 99 X 19

POWER

24 VAC, 60 Hz, 105mA

OPERATING VOLTAGE RANGE

23 - 30 VAC

WIRELESS

2.4GHz wireless frequency, IEEE 802.15.4 wireless standard.
Complies with Class B Part 15 of FCC rules.
Does not interfere or communicate with WiFi/802.11 networks.
Pelican Mesh Network Enabled.

TEMPERATURE DEADBAND

3°F setting, auto-adjusting to 5°F.

OPERATING RANGE

-4°F to 122°F
5% to 90 % Relative Humidity (non-condensing)

RELAY CURRENT RATING

2.0A running (Y, Y2, W, W2, G)
1.0A running (Dh & Hu) (TC2 & TC4)

HUMIDITY SENSOR (TC2 & TC4)

Humidify setting: 10 - 80% RH
Dehumidify setting: 20 - 90 RH

CARBON DIOXIDE SENSOR (TC3 & TC4)

400 - 2000 PPM detection range.
+/- 50 PPM accuracy @ 600 PPM and 1000 PPM, auto-calibrating.

STORAGE

-20°F to 160°F

SCHEDULES

Daily, 5-2, and 7 Day Occupied/Unoccupied Schedule.
Up to 12 set times per day.
Optimum Start.
365-day vacation calendar.
Vacation mode button.
Event calendar.
Enforced fan circulation.
Occupied/Unoccupied Ventilation (accessory required).
Occupied/Unoccupied Sensor Setback Schedule (accessory required).

SYSTEM PROTECTIONS

Tamper proof security screw.
Four minute short cycle timer.
Temporary schedule override allowance.

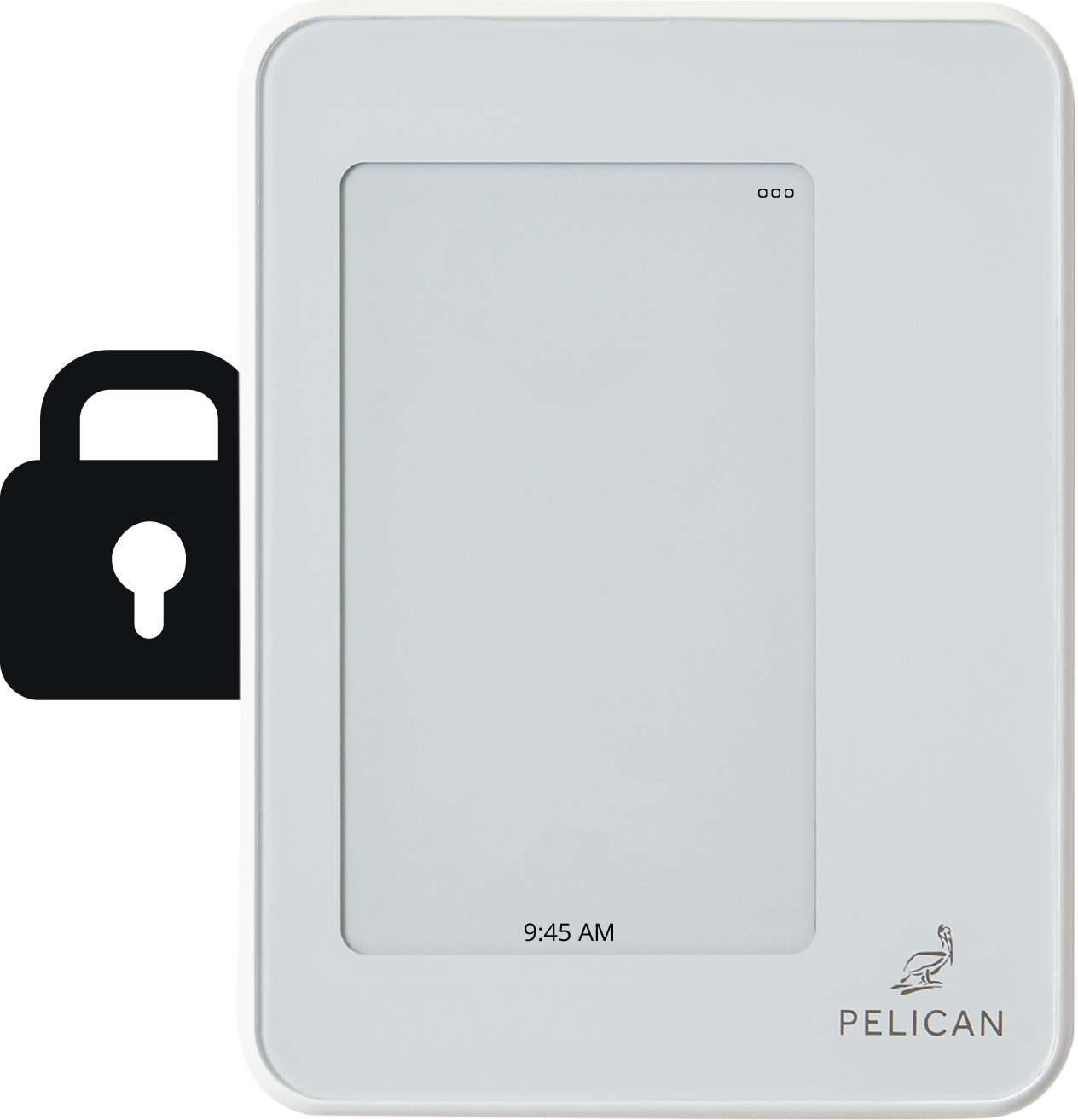

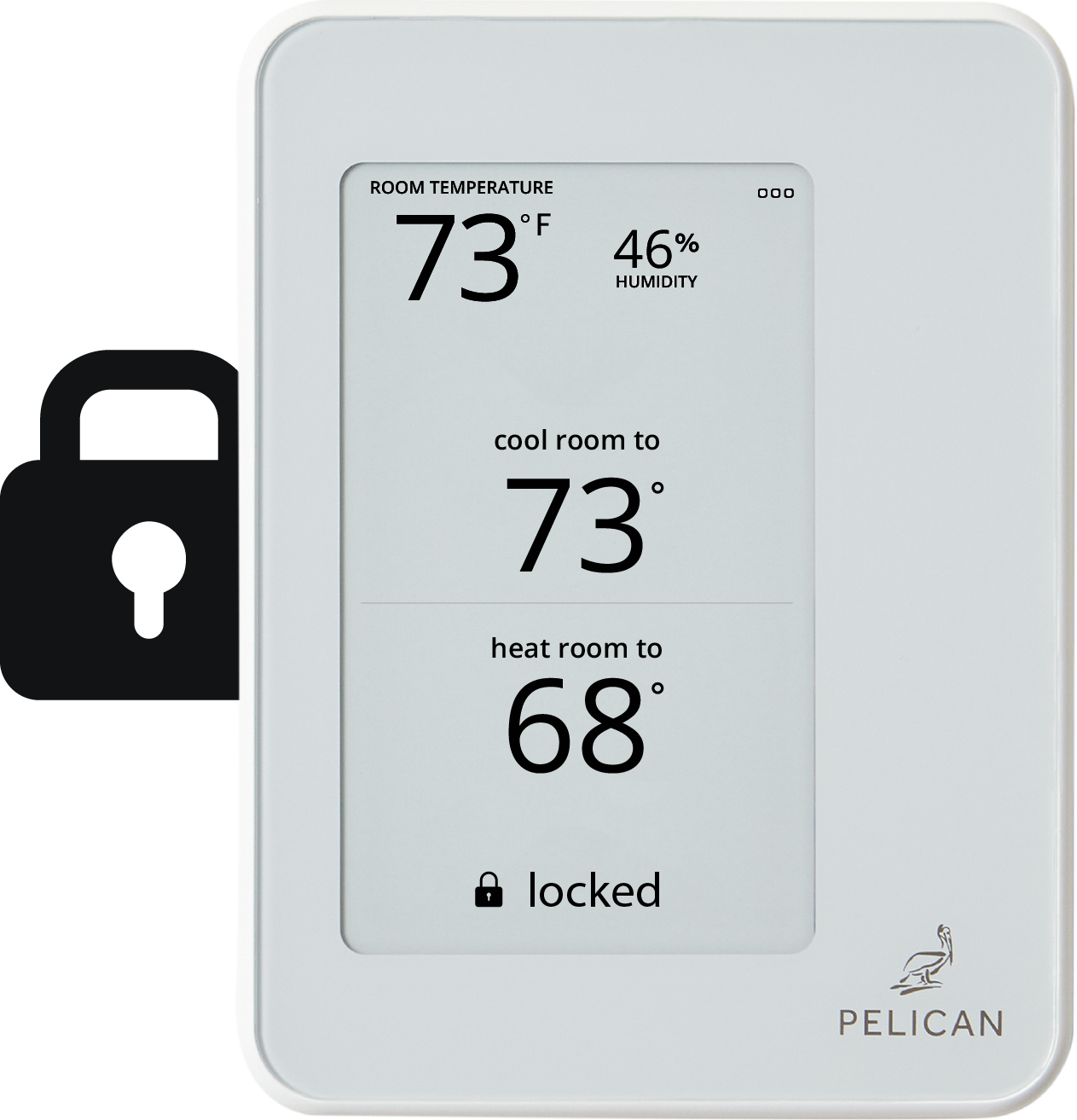

Schedulable keypad lockout.
365-day vacation calendar.
Limit heat and cool set-point ranges.
Auto-adjusting 5°F heat and cool dead-band.
Humidity dead-band protections (TC2 & TC4).
Auto fan enable on high carbon dioxide reading (TC3 & TC4).

ALERTS AND NOTIFICATIONS

Analytics based cool and heat failure notification.
Temperature safe range notification.
Unable to find wireless network notification.
Unable to connect to cloud server notification.
Unreachable device notification.
Humidity safe range detection notification (TC2 & TC4).
High carbon dioxide detection notification (TC3 & TC4).
Dry-contact input to notification (accessory required).
Supply air temperature out-of-range (accessory required).

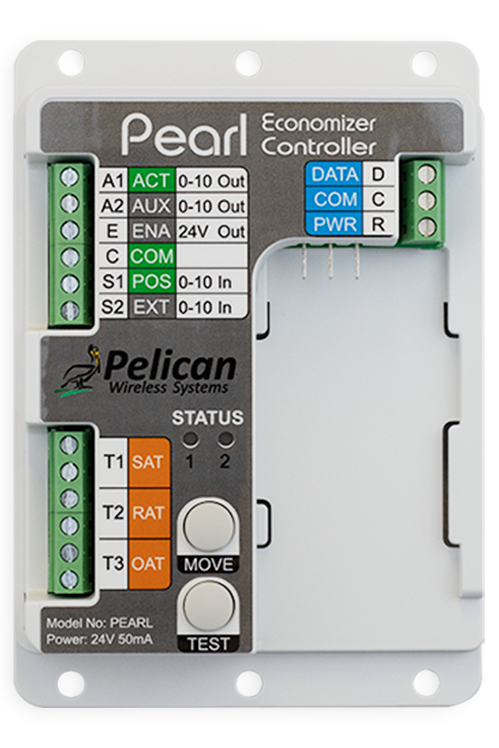

Economizer fault detection and diagnostics (accessory required).
Utility event active notification.

| Technical Specifications.

MODELS

TC1: Temperature Only
TC2: Temperature & Humidity
TC3: Temperature & Carbon Dioxide
TC4: Temperature, Humidity, & Carbon Dioxide

MOUNTING

Designed to be mounted an a vertical single gang electrical box or on a flat surface.

DIMENSIONS

in: 5.2 X 3.9 X 0.75
mm: 132 X 99 X 19

POWER

24 VAC, 60 Hz, 105mA

OPERATING VOLTAGE RANGE

23 - 30 VAC

WIRELESS

2.4GHz wireless frequency, IEEE 802.15.4 wireless standard.
Complies with Class B Part 15 of FCC rules.
Does not interfere or communicate with WiFi/802.11 networks.
Pelican Mesh Network Enabled.

TEMPERATURE DEADBAND

3°F setting, auto-adjusting to 5°F.

OPERATING RANGE

-4°F to 122°F
5% to 90 % Relative Humidity (non-condensing)

RELAY CURRENT RATING

2.0A running (Y, Y2, W, W2, G)
1.0A running (Dh & Hu) (TC2 & TC4)

HUMIDITY SENSOR (TC2 & TC4)

Humidify setting: 10 - 80% RH
Dehumidify setting: 20 - 90 RH

CARBON DIOXIDE SENSOR (TC3 & TC4)

400 - 2000 PPM detection range.
+/- 50 PPM accuracy @ 600 PPM and 1000 PPM, auto-calibrating.

STORAGE

-20°F to 160°F

SCHEDULES

Daily, 5-2, and 7 Day Occupied/Unoccupied Schedule.
Up to 12 set times per day.
Optimum Start.
365-day vacation calendar.
Vacation mode button.
Event calendar.
Enforced fan circulation.
Occupied/Unoccupied Ventilation (accessory required).
Occupied/Unoccupied Sensor Setback Schedule (accessory required).

SYSTEM PROTECTIONS

Tamper proof security screw.
Four minute short cycle timer.
Temporary schedule override allowance.
Schedulable keypad lockout.
365-day vacation calendar.
Limit heat and cool set-point ranges.
Auto-adjusting 5°F heat and cool dead-band.
Humidity dead-band protections (TC2 & TC4).
Auto fan enable on high carbon dioxide reading (TC3 & TC4).

ALERTS AND NOTIFICATIONS

Analytics based cool and heat failure notification.
Temperature safe range notification.
Unable to find wireless network notification.
Unable to connect to cloud server notification.
Unreachable device notification.
Humidity safe range detection notification (TC2 & TC4).
High carbon dioxide detection notification (TC3 & TC4).
Dry-contact input to notification (accessory required).
Supply air temperature out-of-range (accessory required).
Economizer fault detection and diagnostics (accessory required).
Utility event active notification.

| Technical Specifications

MODELS

TC1: Temperature Only

TC2: Temperature & Humidity

TC3: Temperature & Carbon Dioxide

TC4: Temperature, Humidity, & Carbon Dioxide

MOUNTING

Designed to be mounted an a vertical single gang electrical box or on a flat surface.

DIMENSIONS

in: 5.2 X 3.9 X 0.75
mm: 132 X 99 X 19

POWER

24 VAC, 60 Hz, 105mA

OPERATING VOLTAGE RANGE

23 - 30 VAC

WIRELESS

2.4GHz wireless frequency, IEEE 802.15.4 wireless standard.
Complies with Class B Part 15 of FCC rules.
Does not interfere or communicate with WiFi/802.11 networks.
Pelican Mesh Network Enabled.

TEMPERATURE DEADBAND

3°F setting, auto-adjusting to 5°F.

OPERATING RANGE

-4°F to 122°F
5% to 90 % Relative Humidity (non-condensing)

RELAY CURRENT RATING

2.0A running (Y, Y2, W, W2, G)
1.0A running (Dh & Hu) (TC2 & TC4)

HUMIDITY SENSOR (TC2 & TC4)

Humidify setting: 10 - 80% RH
Dehumidify setting: 20 - 90 RH

CARBON DIOXIDE SENSOR (TC3 & TC4)

400 - 2000 PPM detection range.
+/- 50 PPM accuracy @ 600 PPM and 1000 PPM, auto-calibrating.

STORAGE

-20°F to 160°F​​

SCHEDULES

Daily, 5-2, and 7 Day Occupied/Unoccupied Schedule.
Up to 12 set times per day.
Optimum Start.
365-day vacation calendar.
Vacation mode button.
Event calendar.
Enforced fan circulation.
Occupied/Unoccupied Ventilation (accessory required).
Occupied/Unoccupied Sensor Setback Schedule (accessory required).

SYSTEM PROTECTIONS

Tamper proof security screw.
Four minute short cycle timer.
Temporary schedule override allowance.
Schedulable keypad lockout.
365-day vacation calendar.
Limit heat and cool set-point ranges.
Auto-adjusting 5°F heat and cool dead-band.

ALERTS AND NOTIFICATIONS

Analytics based cool and heat failure notification.
Temperature safe range notification.
Unable to find wireless network notification.
Unable to connect to cloud server notification.
Unreachable device notification.
Humidity safe range detection notification (TC2 & TC4).
High carbon dioxide detection notification (TC3 & TC4).
Dry-contact input to notification (accessory required).
Supply air temperature out-of-range (accessory required).
Economizer fault detection and diagnostics (accessory required).
Utility event active notification.

Thermostat Accessories

Vanity Plate

Wired External Input

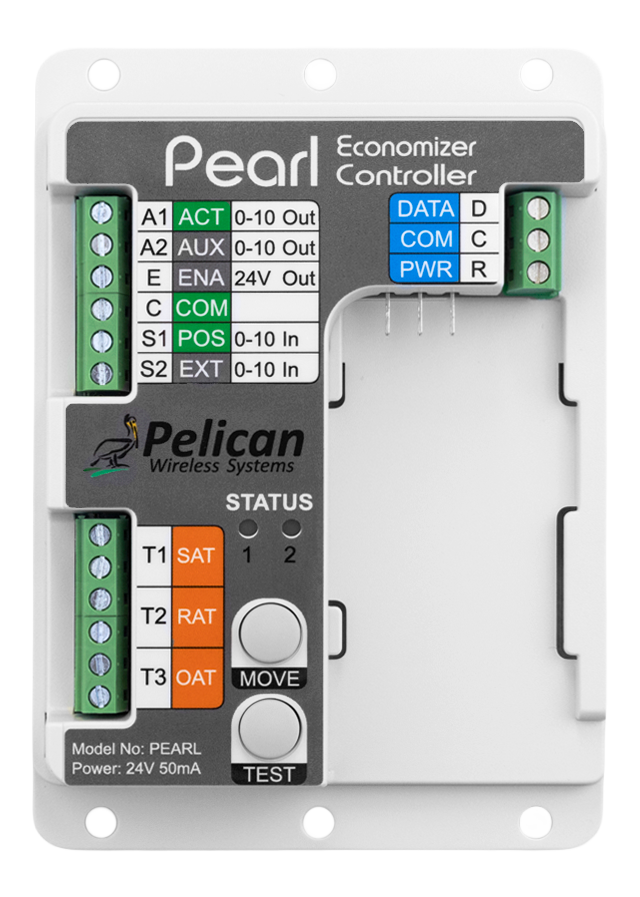

Advanced Rooftop Controller

Wireless Proximity Sensor

Wireless Remote Sensors

Zone Controller

Thermostat Accessories

Vanity Plate

Wired External Input

Advanced Rooftop Controller

Wireless Proximity Sensor

Wireless Remote Sensors

Zone Controller

PELICANIMPACTSOTHERS

With hundreds of thousands of customers using Pelican, we want you to hear some of their stories.

EXPLORE MOREPRODUCTS

PELICANIMPACTSOTHERS

With hundreds of thousands of customers using Pelican, we want you to hear some of their stories.

A decorative wall plate DESIGNED SPECIFICALLY FOR THE TC SERIES THERMOSTAT.

Model Number:

TC-VANITY

dimensions: 6 inch x 6 inch
The TC-Vanity plate is ordered separately.
